LUXMAN C-900u PREAMPLIFICATORE 2 CANALI LECUA 1000 ODNF 4.0 NUOVO GARANZIA ITALIA

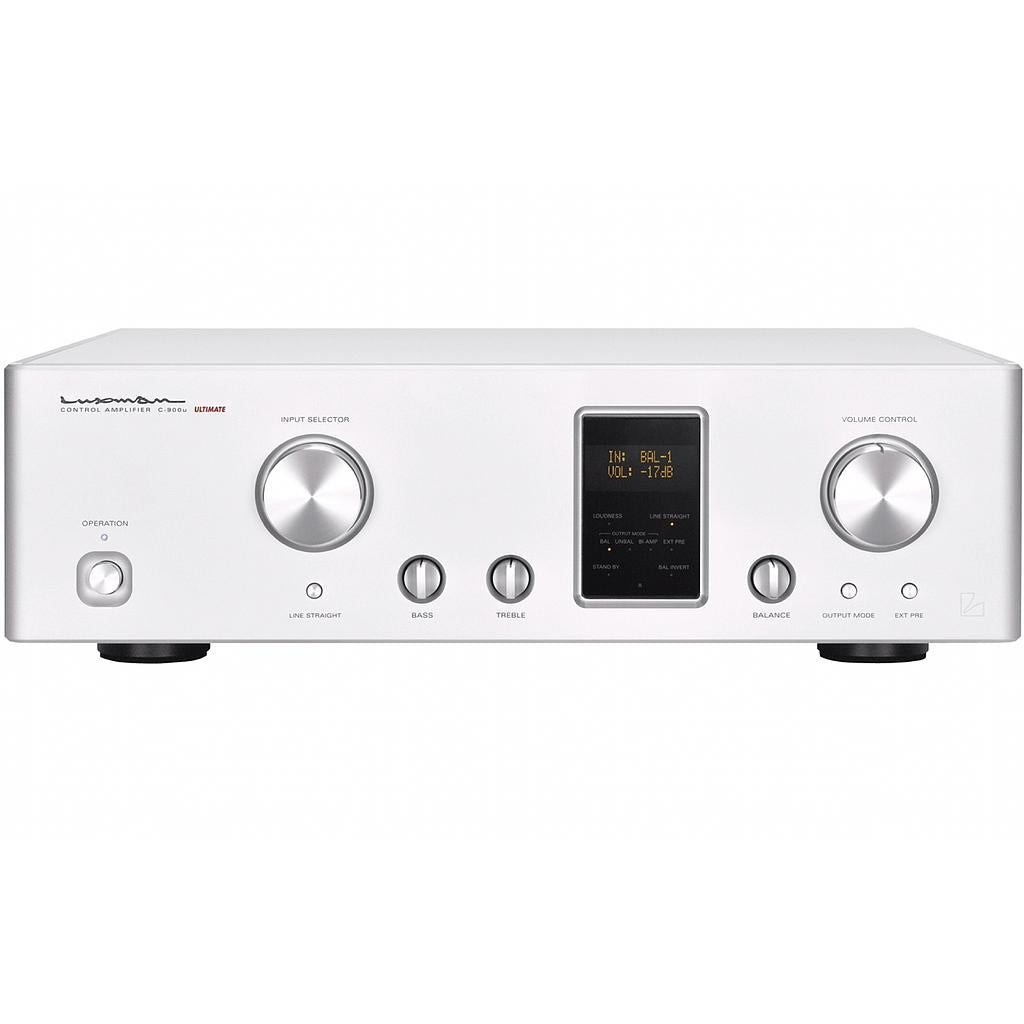

C-900u Designed for supreme tonal quality LUXMAN's pursuit of the uppermost standards of tonal quality has lead to the creation of the C-900u. Four independent modules in the balanced amplification circuit enable the hot and cold components of the left and right audio signals to be handled independently to suppress unnecessary noise generation. Combining an evolved version 4.0 of our traditional ODNF circuit and a robust power supply has achieved high signal-to-noise performance and improved sound quality without distortion. LUXMAN's original LECUA 1000, a stepped fixed resistance attenuator, is used for the volume adjustment system, a major feature of this new control amplifier. The 88 step range allows for more precise volume adjustment. This product is an appropriate centerpiece for any modern hifi system due to its elegant design, user friendly features, refined tone controls, premium tactile operation, and more.  Gallery  Spec  Download New LECUA 1000 attenuator, a fully balanced configuration and a discretely configured ODNF circuit, directly coupled to the amplifier It can be said that accurate volume adjustment is fundamental to a control amplifier. The C-900u has been equipped with our new LECUA* 1000, a highly precise electronically controlled attenuator which has been used in LUXMAN's 80th anniversary flagship model, the C-1000f. This system is extremely resistant to external vibration and changes in sound quality over the volume control range, as well as being an extremely durable design. The LECUA circuit uses stepped fixed resistance and increasing the number of steps from 72 to 88 allows more delicate volume control adjustments, with no deterioration of sound quality from 0dB to 87dB. The completely balanced configuration of the C-900u features 4 of these new LECUA 1000s in parallel, achieving ideal balanced transmission. Also, the LECUA 1000 system handles left and right balance control adjustment and level adjustment in bi-amplified output mode. In addition, the new LECUA 1000 circuit has an improved three dimensional structure and is directly connected to the amplification circuit, minimizing signal routing and improving efficiency. Our latest negative feedback circuit, ODNF** version 4.0, achieves higher performance, being quadruple paralleled in the first main amplifier stage, triple paralleled in the first error detection stage and featuring a Darlington connected second stage. Only the distorted components of an audio signal are fed back to the amplification circuit to optimize the negative feedback effect. Increased primary slew rate and ultra-wide bandwidth contribute to an extremely low level of distortion, especially in the high frequency range. An improved signal to noise ratio allows the full expression of delicate musical pieces where the amount of feedback should be minimal. We have paid special attention to the shape, weightiness and texture of the volume control knob, pursuing a natural, high quality feel since this control is most frequently handled by the listener.* LECUA stands for "LUXMAN Electrically Controlled Ultimate Attenuator".** ODNF stands for "Only Distortion Negative Feedback". Large capacity, highly stable power supply circuit The high performance power supply circuit features a CI type power transformer, with equivalent capacity to that of our B-1000f monaural power amplifier. Applying the philosophy of "Power Amplifier Driver", the voltage amplification stage drives the connected power amplifier stage precisely with sufficient power and is regulated by four large capacity 3,300μF blocking capacitors. The delicacy and vitality of various audio signals are transmitted to the power amplifier with the support of this remarkably stable power supply with almost no small voltage fluctuations. Multifunctional and user friendly The multifunctional C-900u has been equipped with user-friendliness, flexibility, and expandability to fully integrate with the listening environment. The clearly visible fluorescent display shows current input source and sound volume. A zoom function on the remote control can expand this 4 times larger. This unit is equipped with a bi-amplifier output mode, in which a balanced output circuit can be used as a 2-channel unbalanced output. An external pre-amplifier input is useful for connection to an AV system and the tone controls are electronically tuned for added tonal quality. Highly rigid chassis, isolator legs & blasted white finish The highly rigid loopless chassis used for the enclosure eliminates ground loops which can lead to deterioration in sound quality. Cast-iron isolator legs prevent resonance thanks to the characteristics of their metallic structure, the density gradient decreasing from the center to the periphery of each leg. The legs also eliminate adverse effects caused by vibration and effects from the power transformer or the supporting surface. The blasted white exterior has no visible structural screws, adding a touch of high quality and a dignified presence. Comfortable remote control operation The lightweight aluminum remote control allows the user to operate a wide variety of the C-900u's functions comfortably from the listening position. Volume adjustment is a matter of course, the loudness function that automatically provides optimal tonal adjustment according to sound volume, selection of balanced phase presets that can be set for each input unit, display dimmer control (brightness switching), display zoom control and more are all remotely operable. Gallery       Spec Input sensitivity/Input impedance Unbalanced 255mV/43kΩBalanced 255mV/86kΩ Output/Input impedance Unbalanced rating 1V/90Ω, max. 11VBalanced rating 1V/180Ω, max. 22.5V Frequency response 20Hz to 20kHz (+0, -0.1dB)5Hz to 120kHz (+0, -3.0dB) Total harmonic distortion Unbalanced 0.009% (20Hz to 20kHz)Balanced 0.005% (20Hz to 20kHz) S/N ratio (IHF-A) Unbalanced 123dBBalanced 126dB Volume adjustment New LECUA1000 Negative feedback circuit ODNF 4.0 Max. tone control range BASS: ±8dB at 100HzTREBLE: ±8dB at 10kHz Remote control functions ・Operation・Dimmer・ Input selector・Output mode・Balanced phase selection・Channel preset・External pre-amplifier input・Line straight・Loudness・Volume up/down・Mute・Zoom Power consumption 42W2.2W (in standby mode) External dimensions 440(W) x 130(H) x 430(D) mm (including 17mm front panel knob and 14 mm rear panel speaker terminals) Net weight 19.7kg Accessories Remote control (RA-20)Power cable
