Powergrip YG-3 Filtro di rete 12 prese filtrate e divise in gruppi 5750 W - 25A max
Metodi di pagamento accettati

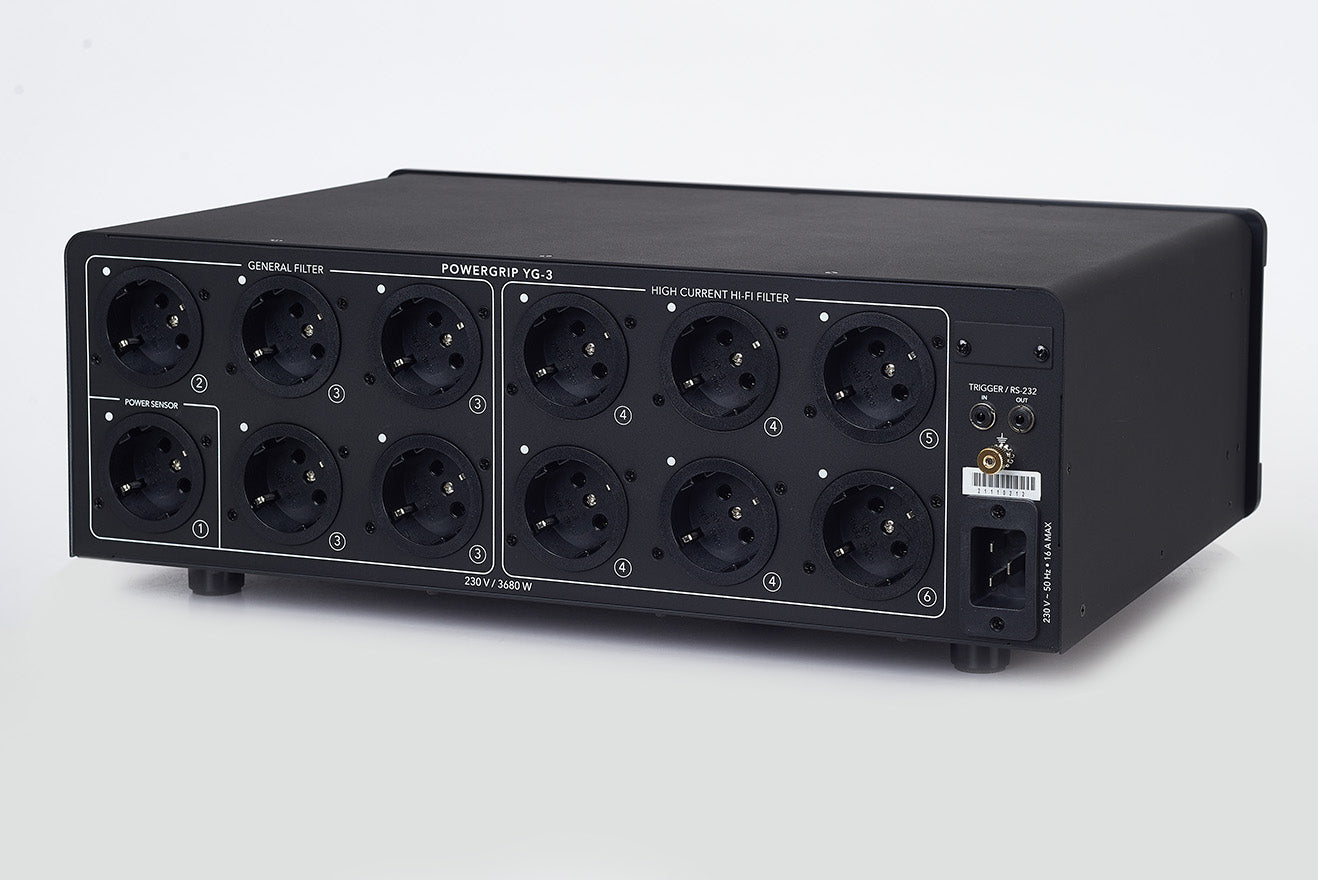

6 specially designed sockets for amplifiers.
* Power cord limit is 16A
Wi-Fi for control
Enhanced settings menu
Configurable filtering
DC filter on demand
Power line monitoring
Mobile App via Wi-Fi.
Power sensor will switched your system on if one of your devices is switched on.
Trigger in/out, RS232 and LAN (option) for professional control.
You can be sure no troubles in power line will harm your devices. While keeping your devices in safe, YG-3 itself will keep alive up to 320V! If more than 320V, simple fuse change will bring it to life.
Few styles.
Power line monitoring.
Light sensor controls display brightness till full off state.
| Voltage range for safe continuous operation of YG-3 PSU | 160 – 320 V |
| Maximum current of the internal wiring of the console | 25 A |
| Maximum current of power cord and power socket | 16 A |
| Self power consumption | 1.4 W – 20 W depends on used features |
| Сonsumption in case of full power off by button 2 | 0 W |
| Neutral pass through resistance | < 0.00005 Ohm |
| Live pass through resistance (high current hi-fi filter without fuse and fuse holder) | 0.015 Ohm |
| Fuse | Resistance 0.01 Ohm (with holder), size 5 x 20mm, current 16 A |
| DC measure range | ± 999 mV |
| Maximum filtering DC value | 1.8 V |
| Maximum on/off delay | 60 sec |
| Protection voltage range (turn off connected devices) | low: 190 V, high: 256 V |
| May be influenced by other parameters like mains distortion to provide best protection and exclude false triggering | |
| High Voltage Surge Protection | Varistors |
| Controls | 7 sensor buttons and full of switch on a bottom |
| Remote control | Wi-Fi (Ewelink APP) |
| Integration (RTI, Сontrol4, Crestron etc.) | Trigger, RS232, Ethernet (option) |
| Screen menu | Brightness, color, style, filtration, always on sockets, delays |
| Auto switch on | Power sensor (detect connected device power state), light sensor |
| PACKAGE | Power console Power cord (2 m) Rack mounts Antenna grounding cable Direct power cord connection blanket |
| Number of sockets | 12 |
| Power cable cross size | 3.3 mm² |
| Cross size of power cables internal wiring | 3.3 mm² (High current Hi-Fi section) |
| Console weight | 7.6 kg |
| Dimensions (H x W x D) | 156.5 х 440 х 280 mm (incl feet) |
